Collapsible Aluminium Tube Making Line

Packaging Production Equipment

Get a Quote

Description

Product Details

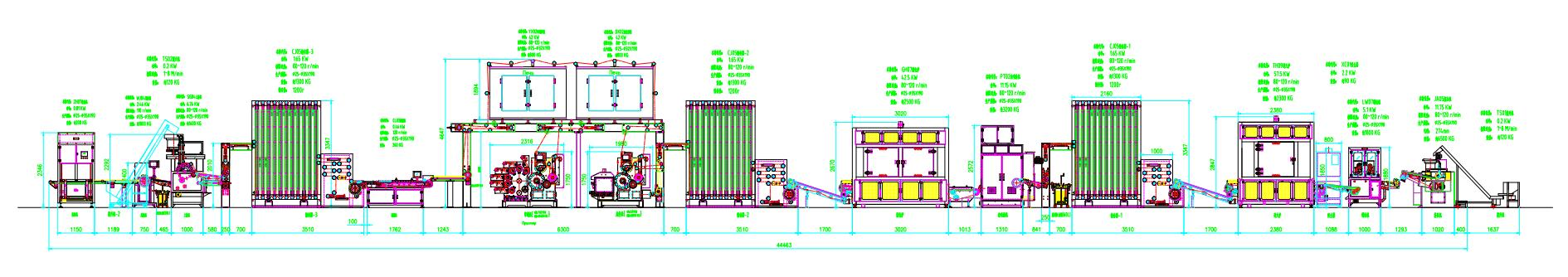

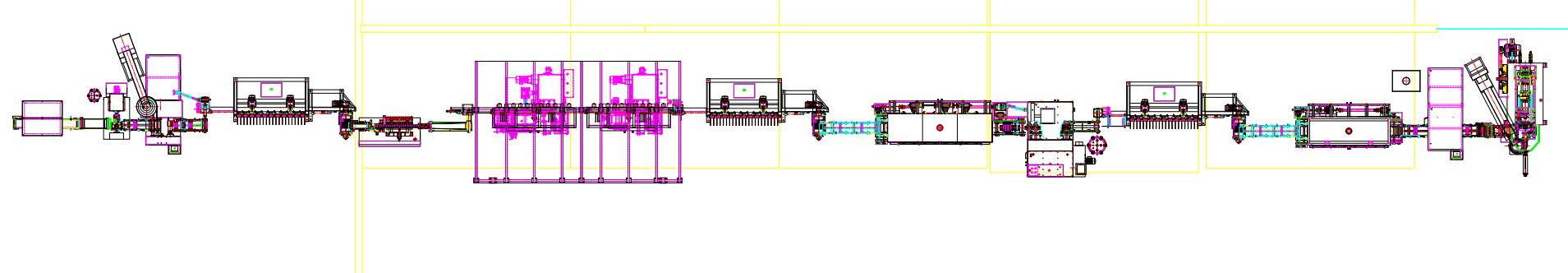

Layout of production line Collapsible Aluminium Tube Making Line

Main machine configuration of a standard production line

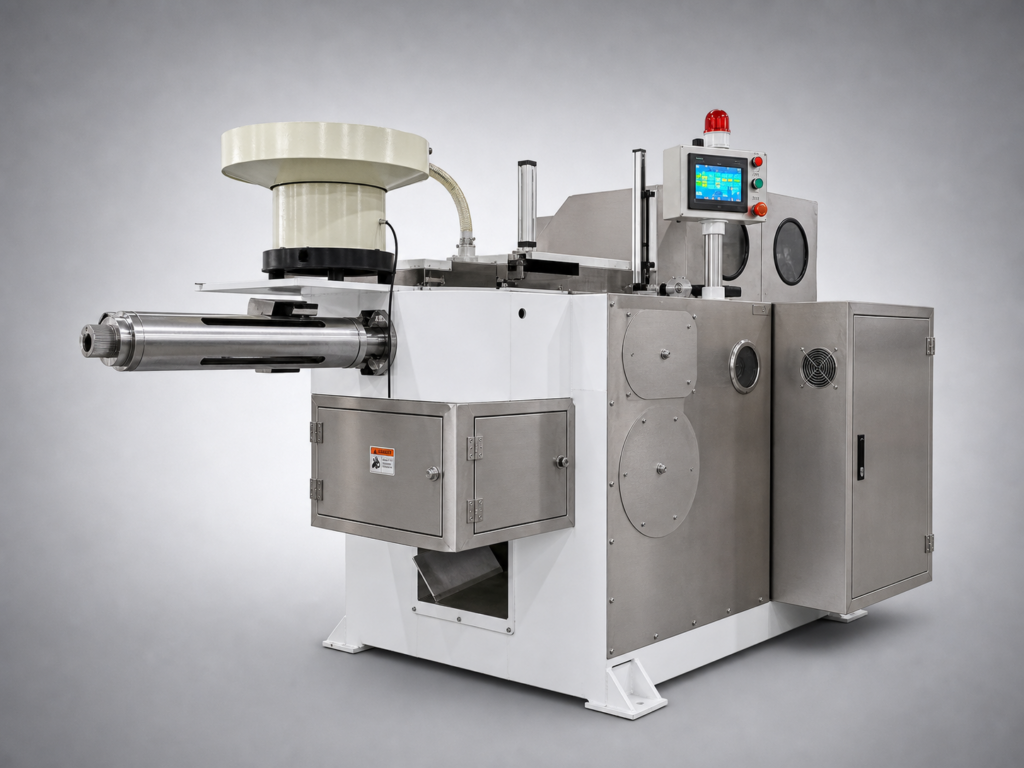

1. Extrusion Press machine (with slug elevator)

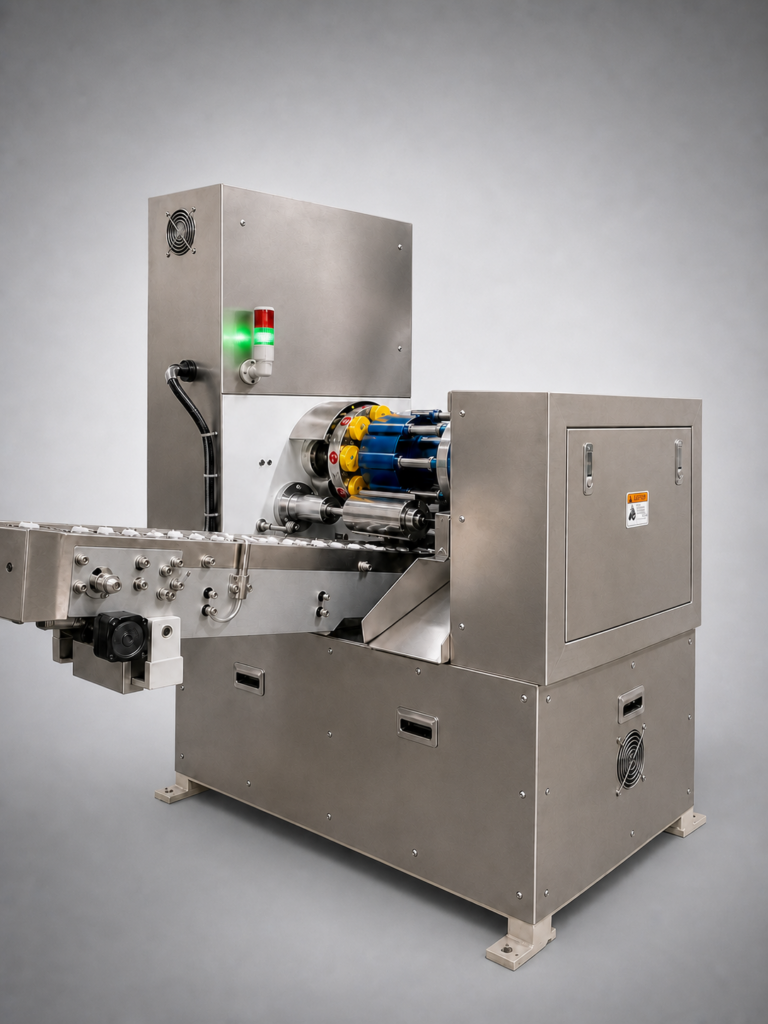

2.Trimming machine (with swarf collector)

3.Annealing oven (electric heating)

4.Accumulator-1

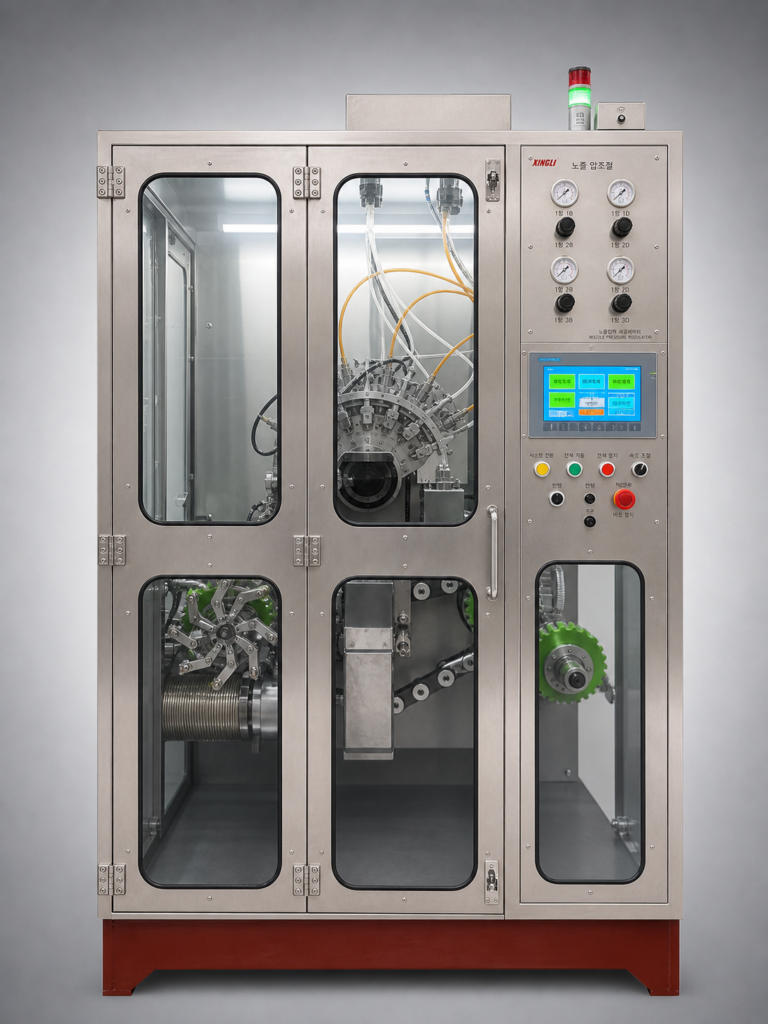

5.Internal coating machine

6.Curing oven (electric heating)

7.Accumulator-2

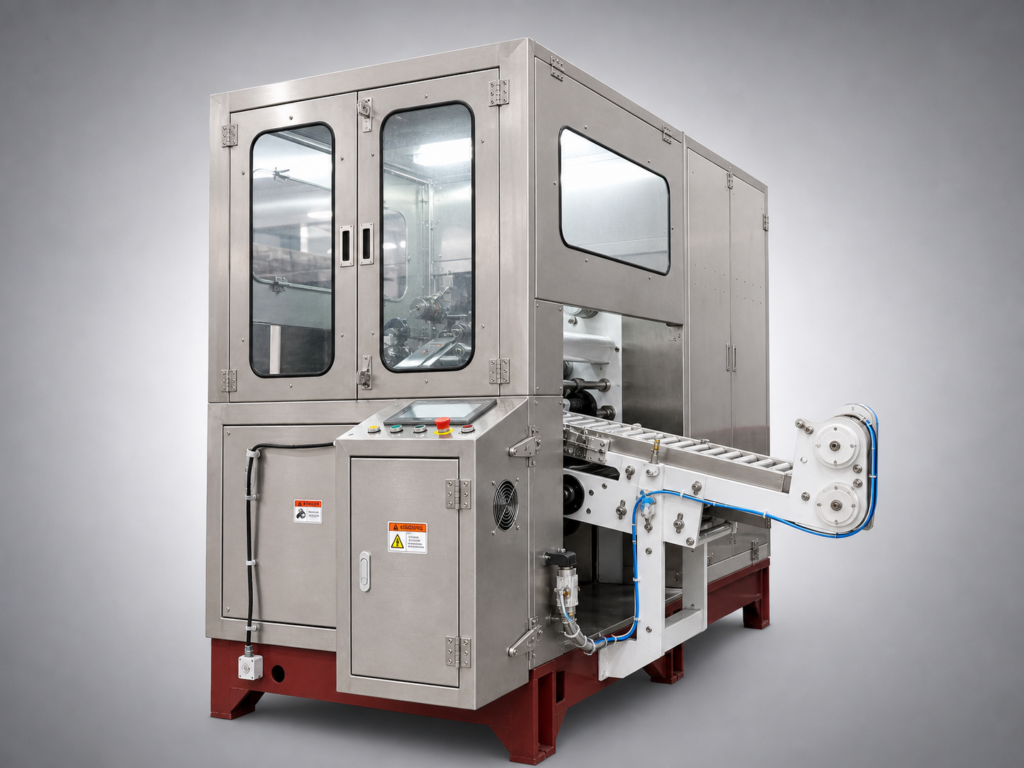

8.Base coating machine

9.Polymerization oven (electric heating)

10.Printing machie

11.Polymerization oven (electric heating)

12.Accumulator-3

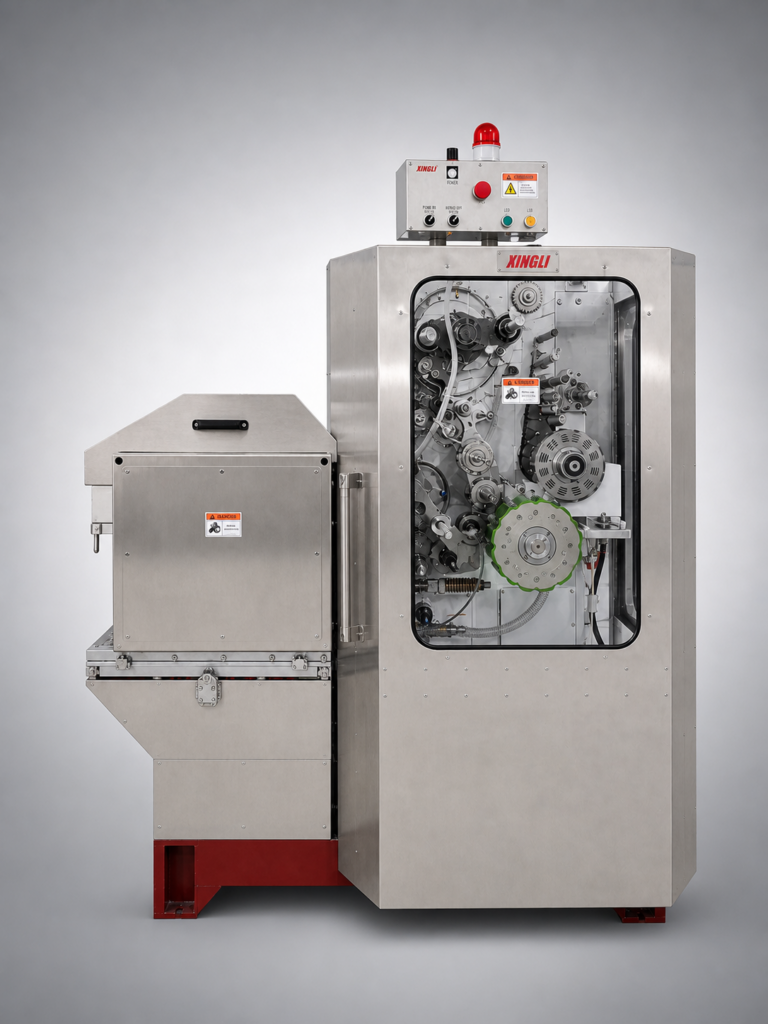

13.Leak detector

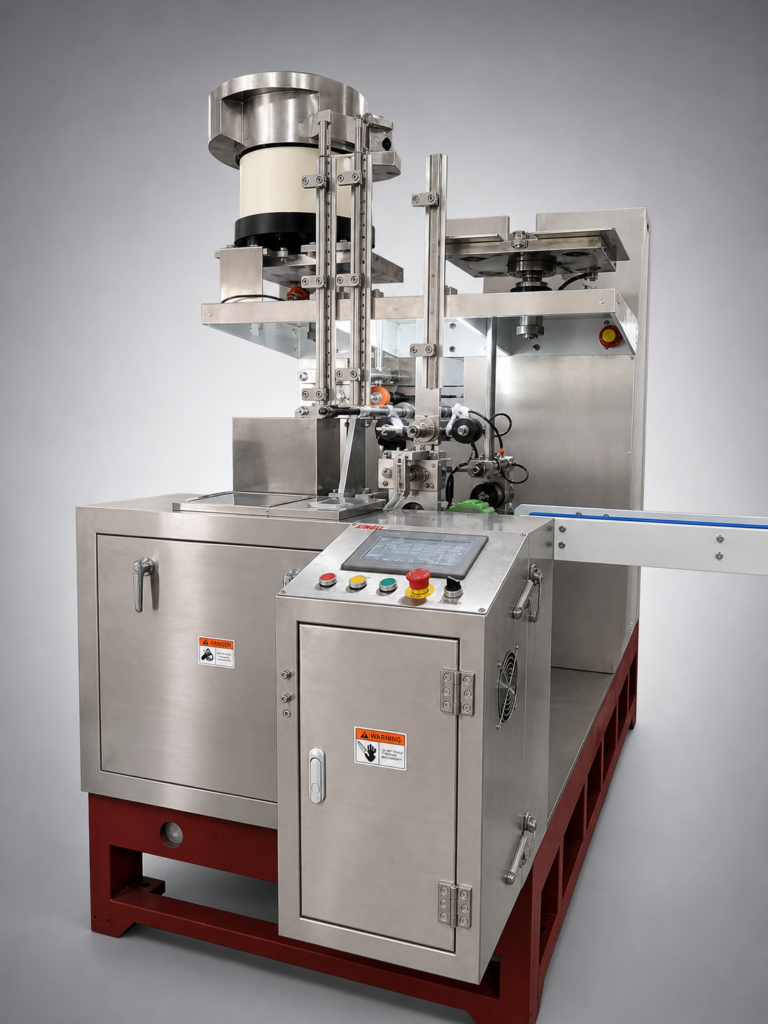

14.Capping machine (with cap elevator)

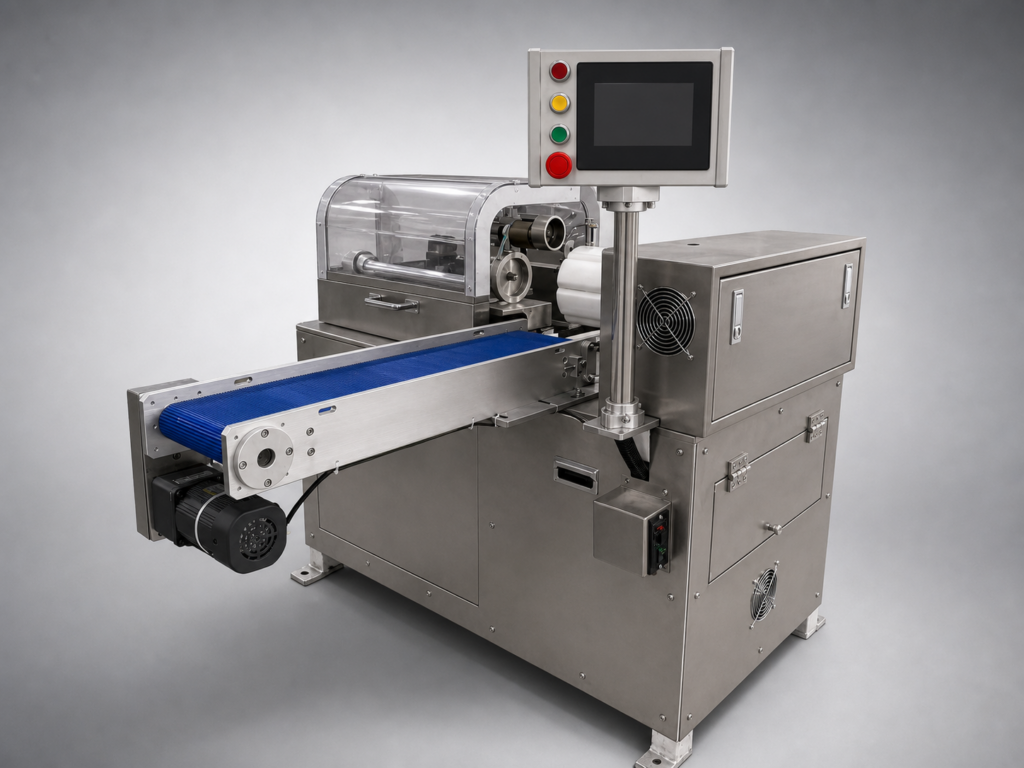

15.Latexing machine

16.Packing machine

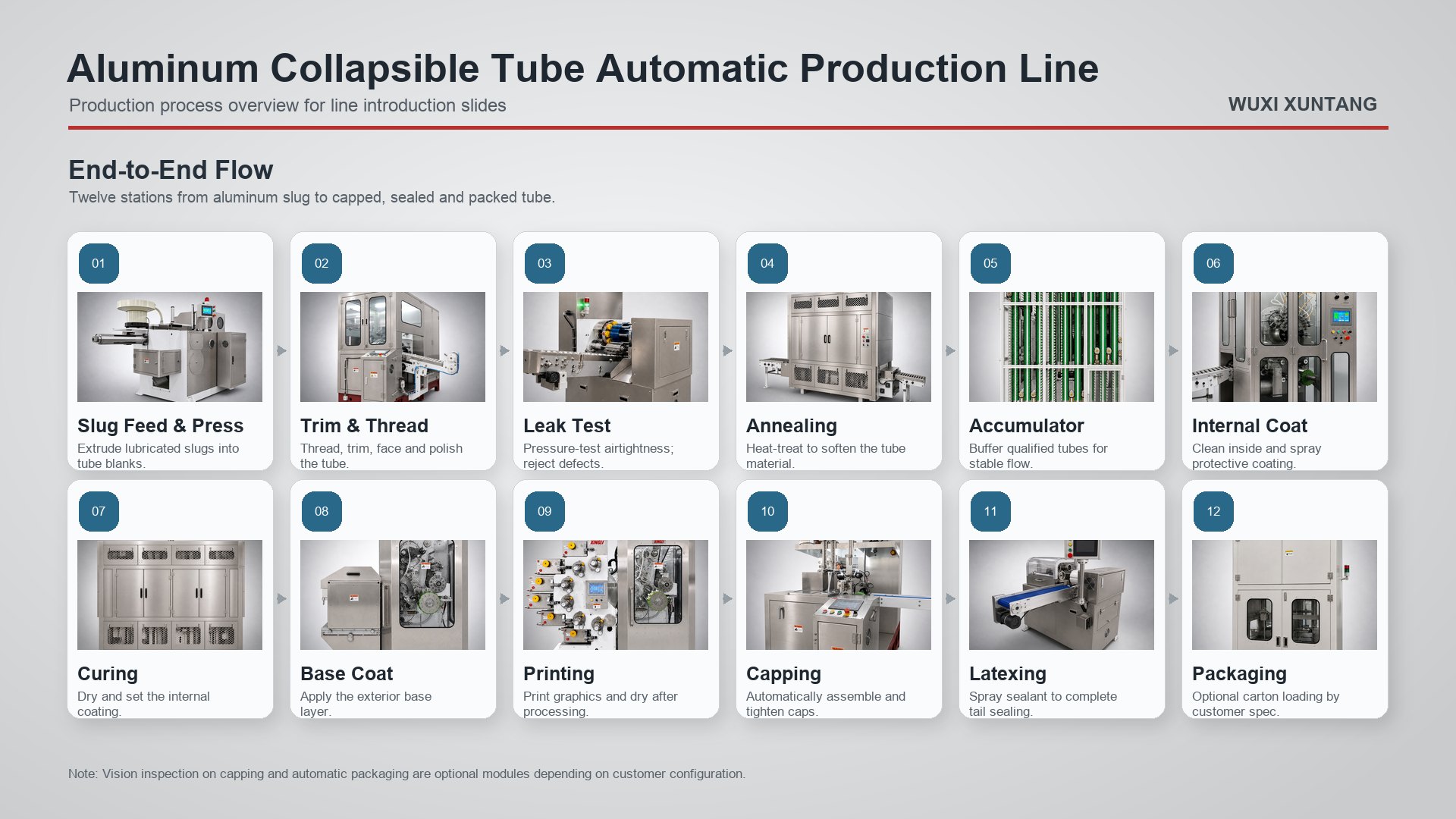

Production line process flow

The production speed is 80-90 pcs/min

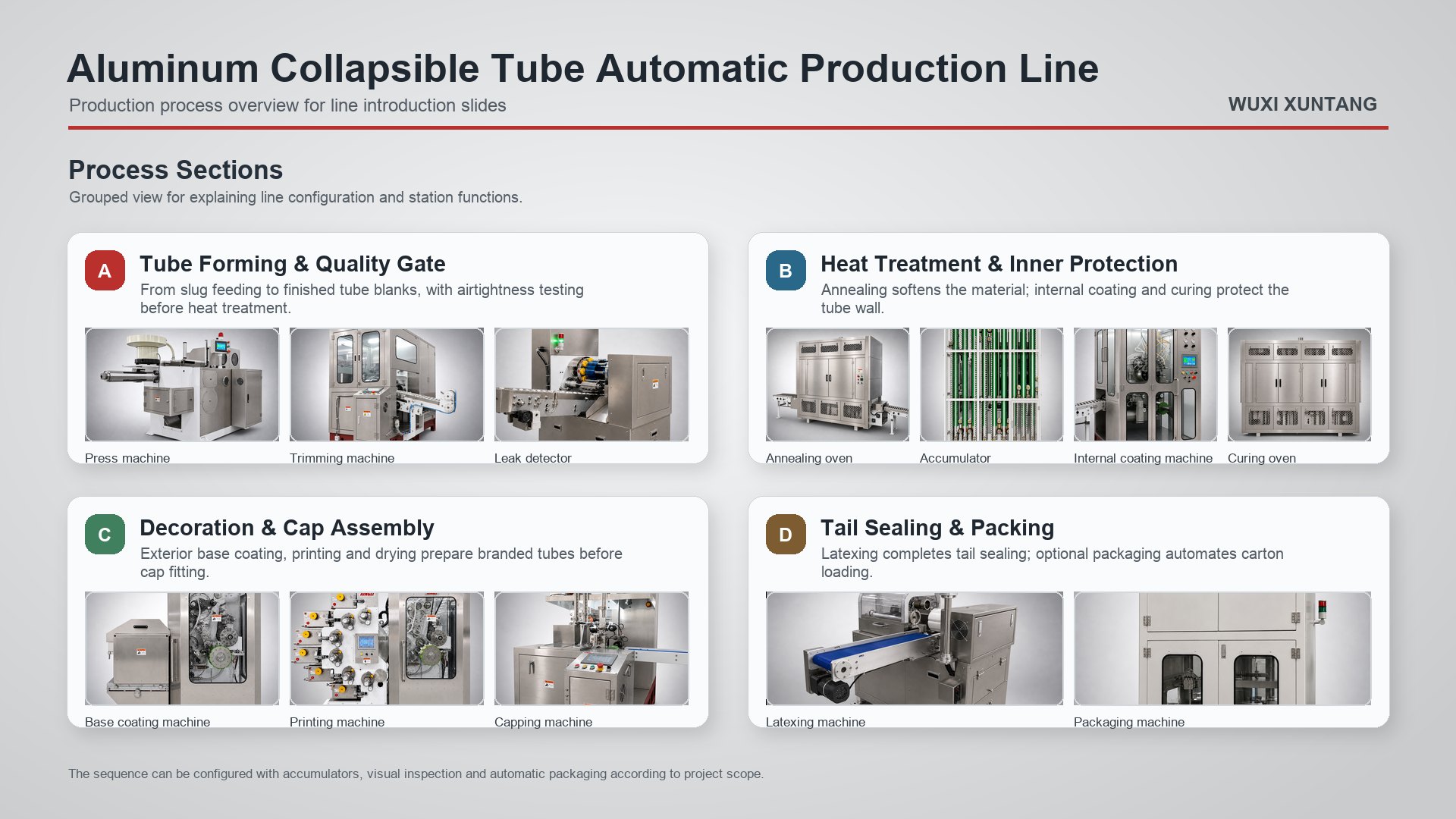

1. The vibrating bowl feed the aluminum slug and enters the extrusion press machine to squeeze them into tubes, then the trimming machine cuts out the threads of the nozzle and polishes the tube body, and then enters the accumulator storage for storage during shutdown.

2. During the production process, the storage is directly connected to the annealing oven, and the aluminum tube undergoes high-temperature softening treatment in the annealing oven,and then internal spraying (mainly used for anti-corrosion and hygiene and safety) through the internal lacquering machine,and then high temperature internal drying through the lacquer curing oven.

3. The dried tube passes through the accumulator to color the tube through background color, printing and other processes (six color printing is possible). In the two processes of background color and printing, each process is required the drying oven is for drying operation, so a gantry platform is placed above the two machines, and the two drying ovens are placed on the platform, corresponding to the base coating printing machine and the printing machine.

4. The colored aluminum tube is then led to the cap twisting process from the storage, the cap is screwed on the aluminum tube by the capping machine, and finally the latexing machine is evenly sprayed with latex on the inner wall of the aluminum tube tail and then automatic packaged.

Collapsible Aluminium Tube Making Line

Main configuration and brand for production line:

Item	Configuration	Brand	Original Country
1	PLC	SIEMENS	Germany
2	Servo motor and driver	SIEMENS	Germany
3	Touch screen	SIEMENS	Germany
4	Main motor	Taibang GPG / Shanghai	China
5	Proximity switch	Schneider	Germany
6	Relay	Omron	Japan
7	Pneumatic components	SMC / Yadeke / FESTO	Japan / China / Germany
8	Main bearing	NTN / NSK / IKO / HRB	Japan / China

FAQ: Collapsible Aluminium Tube Making Line

What is a collapsible aluminium tube making line?

A collapsible aluminium tube making line is a complete production system for manufacturing aluminium tubes used in packaging applications such as pharmaceutical, cosmetic, personal care and chemical products. The line shown here covers the main process from aluminium slug feeding and extrusion to trimming, annealing, internal coating, curing, base coating, printing, leak detection, capping, latexing and packing. For buyers comparing aluminium tube production equipment, this page should be read as a complete-line reference rather than a single standalone machine. The final configuration should be confirmed according to tube diameter range, factory layout, target output, printing requirements, cap type and automation level.

What production speed is stated for this aluminium tube line?

The stated production speed on this page is 80-90 pcs/min. This value should be treated as the reference speed for the listed line configuration, not as a universal guarantee for every tube specification. Actual running performance can be affected by tube diameter, tube length, printing complexity, coating process, cap type, inspection requirements and the selected automation modules.

Which machines are included in the standard line configuration?

The standard configuration listed on this page includes extrusion press machine, trimming machine, annealing oven, accumulators, internal coating machine, curing oven, base coating machine, polymerization ovens, printing machine, leak detector, capping machine, latexing machine and packing machine. The page also lists control and component brands such as Siemens, Schneider, Omron, SMC, FESTO, NTN, NSK, IKO and HRB for selected parts.

What information should a buyer provide before requesting a quotation?

For a practical quotation, buyers should provide tube diameter range, tube length, required output, printing colors or decoration process, coating requirements, cap type, packing method, available workshop layout, utility conditions and any preferred component brands. If these details are not fixed, Xuntang can first discuss a reference layout and configuration before preparing a formal proposal.
