Description

Product Details

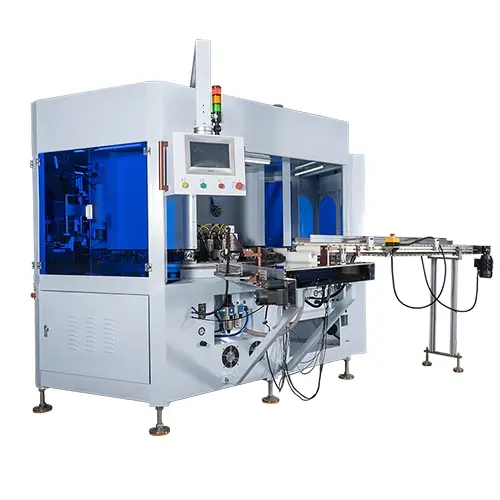

Automatic full servo screen printing machine

Technical parameters:

Common Technical Parameters

Parameter Value
Maximum printing speed 80 pcs/min
Maximum printing stroke 220 mm
Maximum printing length 200 mm
Available printing diameter 13-60 mm
LED UV lamp power 1.2 KW
UV mercury lamp power 4 KW
Air pressure requirement 5-7 Bar
Electricity requirement 380V 50Hz

Model Differences

Model Power Machine size Machine weight
SUV416 30 KW 3319*3313*2030 4200 Kg
SUV516 32 KW 3319*3313*2030 4500 Kg
SUV620 36 KW 3597*3227*2030 5000 Kg
SUV720 40 KW 3597*3227*2030 5500 Kg

FAQ: Automatic Full Servo Screen Printing Machine

What is this full servo screen printing machine used for?

The automatic full servo screen printing machine is used for tube decoration in packaging production. It is suitable for tube manufacturers that need stable screen printing on tube bodies and want to compare model options by printing speed, stroke, printing length, available tube diameter, UV lamp power, air pressure, electricity requirement, power, machine size and machine weight.

Which model range is listed on the page?

The page lists SUV416, SUV516, SUV620 and SUV720 models. The table shows a maximum printing speed of 80 pcs/min, maximum printing stroke of 220 mm, maximum printing length of 200 mm and available printing diameter of 13-60 mm for the listed model range. Final selection should be confirmed according to tube size, decoration requirements and factory utilities.

What information is needed before quotation?

Before quotation, buyers should provide tube diameter and length, tube material, printing colors, target output, UV curing preference, available electricity, compressed air conditions and space limits. These details help confirm whether the listed model range fits the project.
