Tube Heading Machine for Oval & Special-Shaped Tubes

Packaging Production Equipment

Description

Product Details

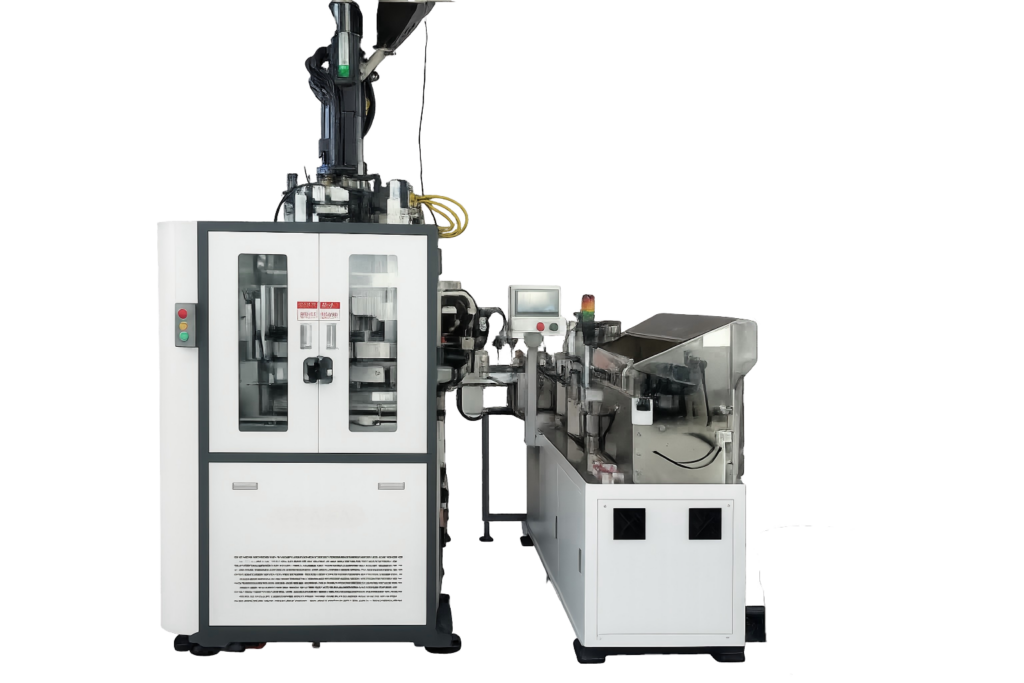

Vertical Injection Heading Machine

Advanced Heading Solution for Special Plastic and Laminated Tubes

Our Vertical Injection Heading Machine is specifically developed for the production of special plastic tubes and laminated tubes requiring complex shoulder designs.

The machine is particularly suitable for manufacturing oval tubes, asymmetric tube shapes, deodorant (DEO) tubes, lipstick tubes, cosmetic applicator tubes, and other customized packaging solutions.

With advanced hot runner injection technology and specialized heading mechanisms, the machine delivers excellent shoulder quality, high production efficiency, and minimal material waste.

Key Features

Designed for Special Tube Applications

Unlike conventional heading machines designed for standard round tubes, our system is engineered to handle a wide range of special tube formats, including:

Oval tubes
DEO tubes
Lipstick tubes
Cosmetic applicator tubes
Flat and irregular tube shapes
Customized tube shoulder designs

This flexibility allows packaging manufacturers to meet the growing demand for differentiated cosmetic, personal care, pharmaceutical, and specialty packaging products.

Two Structural Designs Available

To accommodate different production requirements, we offer two machine configurations:

Flip-Type Heading Machine

Suitable for complex shoulder geometries
Excellent mold accessibility
High process stability
Ideal for premium cosmetic tube production

Sliding-Type Heading Machine

Compact structure
Fast cycle operation
High productivity
Suitable for large-scale manufacturing

Customers can select the most appropriate configuration according to product design, output requirements, and factory layout.

Advanced Hot Runner Injection System

The machine adopts a high-performance hot runner injection system that offers significant advantages:

Reduced runner waste
Lower raw material consumption
Improved injection consistency
Better shoulder appearance
Shorter molding cycle
Reduced operating costs

The hot runner design is particularly beneficial when processing high-value materials and customized packaging products.

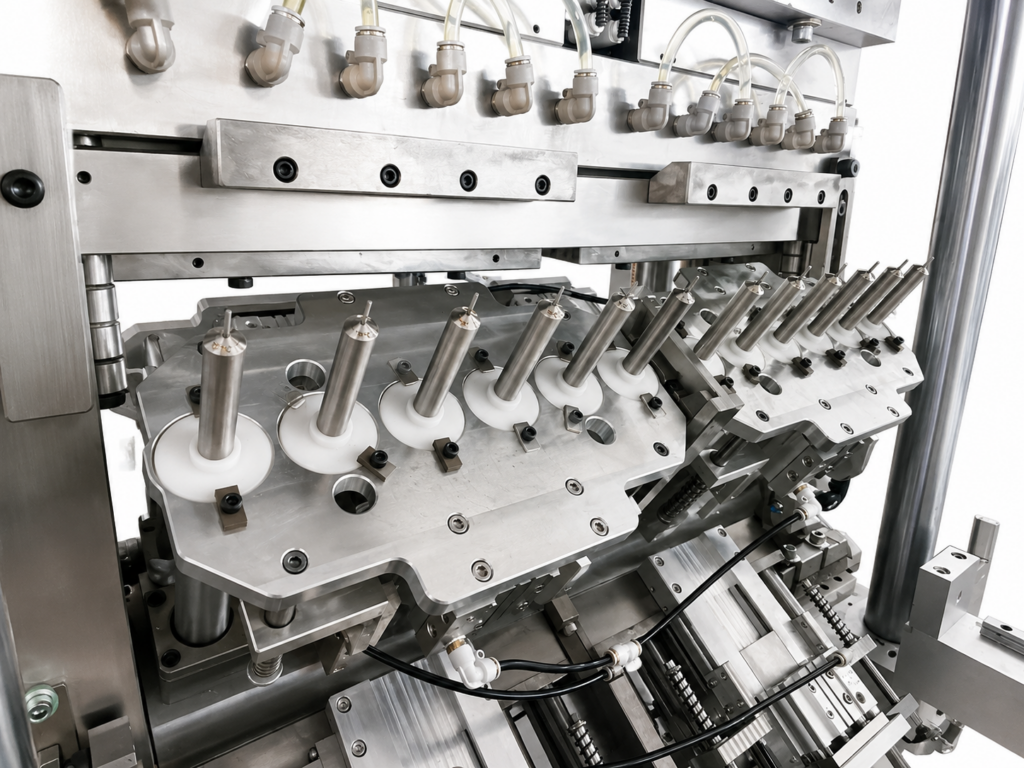

Excellent Shoulder Quality

Precise injection control ensures:

Strong tube-to-shoulder bonding
Accurate shoulder dimensions
Consistent neck and thread quality
Smooth surface finish
High sealing reliability

The machine is capable of meeting demanding quality standards required by cosmetic and pharmaceutical packaging manufacturers.

High Automation and Stable Production

Automatic tube feeding
Automatic heading process
Automatic product discharge
User-friendly HMI control system
Recipe storage for quick product changeover

The automated design minimizes labor requirements while maintaining stable production performance.

Advantages

✔ Specialized for oval and irregular tube shapes

✔ Suitable for DEO, lipstick, and customized tube packaging

✔ Available in Flip-Type and Sliding-Type configurations

✔ Hot runner injection technology with minimal waste

✔ Strong shoulder bonding performance

✔ High production efficiency

✔ Reduced material consumption

✔ Consistent product quality

✔ Easy operation and maintenance

✔ Reliable long-term production stability

Applications

Our Vertical Injection Heading Machine is widely used in the production of:

Cosmetic tubes
Personal care tubes
Pharmaceutical tubes
DEO tubes
Lipstick tubes
Applicator tubes
Specialty laminated tubes
Customized packaging tubes

Why Choose Our Heading Machine?

With years of experience in tube manufacturing technology, we provide advanced heading solutions that help tube producers manufacture innovative packaging designs

while improving efficiency, reducing waste, and maintaining outstanding product quality.

Whether you are producing standard laminated tubes or highly customized specialty packaging, our Vertical Injection Heading Machine delivers the flexibility and reliability required for modern tube manufacturing.

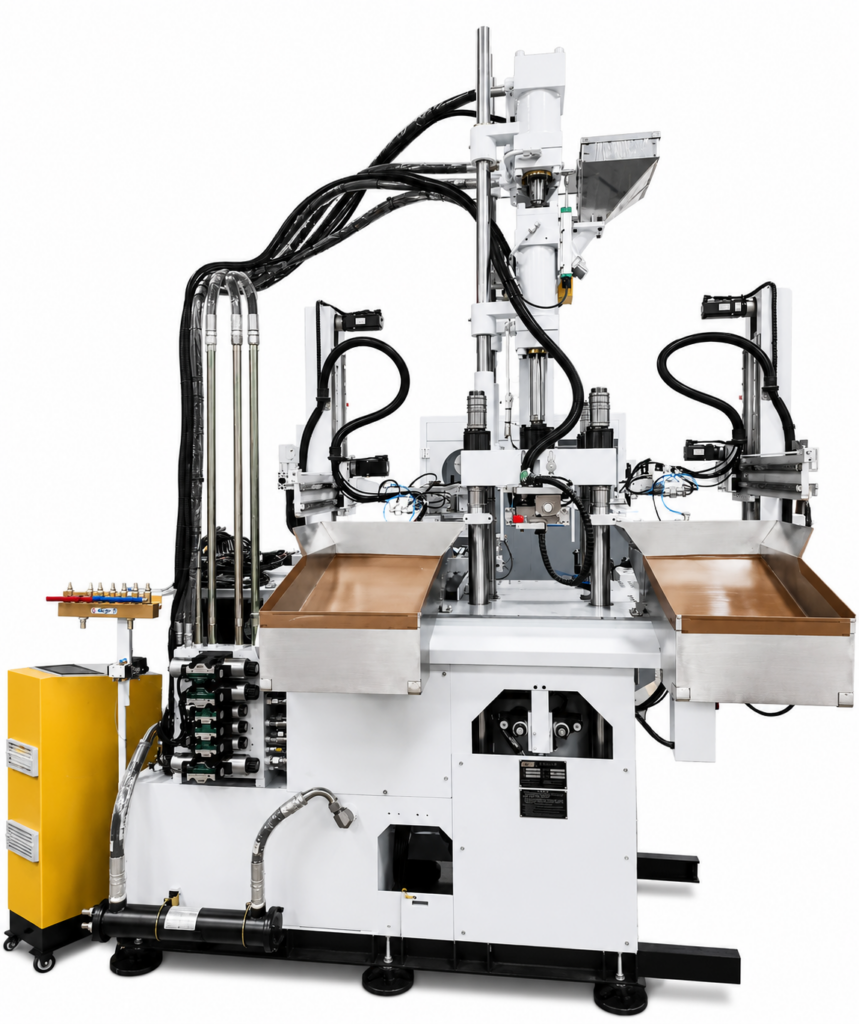

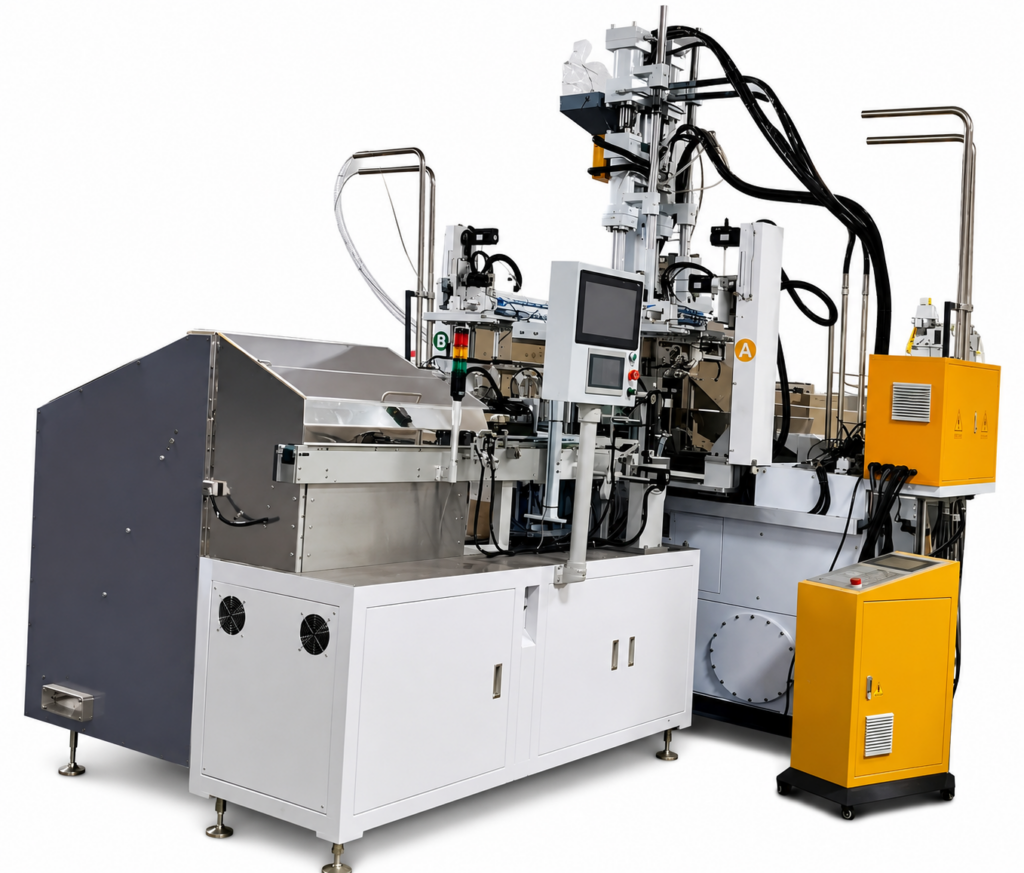

Vertical Injection Heading Machine — Sliding-Type

Technical Parameters	Unit	Typical Value
Screw Diameter	mm	36
Injection Pressure	Kg/cm2	1620
Theoretical shot volume	cm3	143
Max. shot weight(PS)	g	132
Injection Rate	cm³/sec	109
Clamping Force	ton	80
Top Platen Size	mm	610×460
Mold Size	mm	460×310
Sliding Table Size	mm	450×1000
Sliding Table Stroke	mm	500
Min mold thickness	mm	200/300
Opening stroke	mm	250
System Maximum Pressure	Kg/cm²	140
Max. open daylight	mm	450/550
Ejector Stroke	mm	65
Ejector Force	ton	2
Power	V	10
Total Wattage	kw	13.05
Machine weight	ton	2.7
Machine Dimension	m	1.9×1.8×2.9

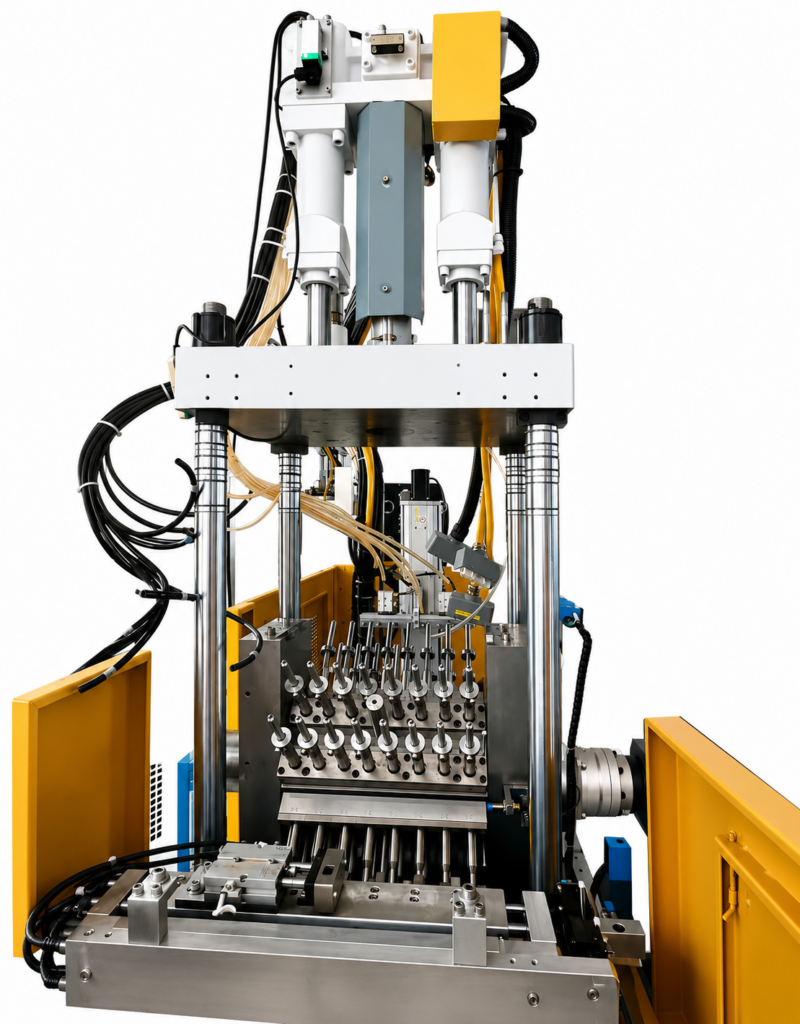

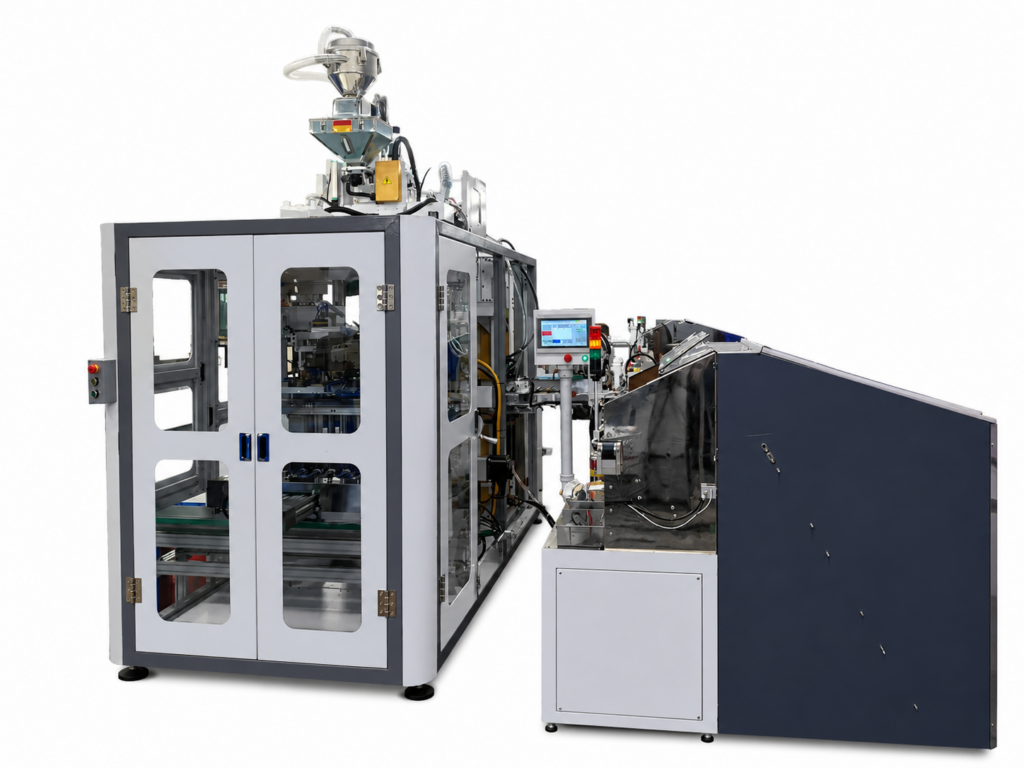

Vertical Injection Heading Machine — Flip-Type

Technical Parameters	Unit	Typical Value
Screw Diameter	mm	36
Injection Pressure	Kg/cm2	1209.9
Theoretical shot volume	cm3	122.1
Max. shot weight(PS)	g	112（3.9）
Injection Rate	cm3/sec	96.4
Clamping Force	ton	50
Top Platen Size	mm	970×640
Mold Size	mm	765×330
Min mold thickness	mm	630
Opening stroke	mm	200
System Maximum Pressure	Kg/cm2	140
Max. open daylight	mm	830
Power	kw	11
Total Wattage	kw	14.6
Machine weight	ton	3.2
Machine Dimension	m	3.4×1.42×3.0
Fastest Cycle Time	s	Depends on the diameter
Cavity Number		Depends on the diameter
Flip Angle	°	90
Turning Speed	s/time	1
Mold Change Time	min	120
Temperature Range	°C	250
Temperature Control Accuracy	°C	±25

Main Electrical Components

Item	Brand
Main Controller PLC	XINJE
Operation Screen HMI	XINJE
Servo Driver	XINJE、Leadshine
Frequency Converter	XINJE
Air switch / Circuit breaker	CHINT
AC Contactor	Schneider
Intermediate Relay	HF
Proximity switch / Limit switch	Beckhoff、FOTEK
Pressure sensor	Panasonic
Switching Power Supply	MEAN WELL

FAQ: Tube Heading Machine for Oval and Special-Shaped Tubes

What is this tube heading machine designed for?

This tube heading machine is designed for special plastic tubes and laminated tubes that require non-standard shoulder designs. The page describes applications such as oval tubes, asymmetric tube shapes, deodorant tubes, lipstick tubes, cosmetic applicator tubes and other customized packaging tubes. It is intended for manufacturers that need more flexibility than a conventional heading machine for standard round tubes.

What design options are described?

The page describes flip-type and sliding-type heading machine designs. The flip-type design is positioned for complex shoulder geometries and mold accessibility, while the sliding-type design is positioned for compact structure and fast cycle operation. Buyers should select the structure according to product shape, mold requirements, output target and layout.

What should buyers confirm before choosing this machine?

Buyers should confirm tube shape, shoulder design, tube diameter, material, neck and thread requirements, target output, mold scope and whether the product is a standard laminated tube or a customized cosmetic or personal care package. These details are necessary before confirming the machine structure and tooling plan.
